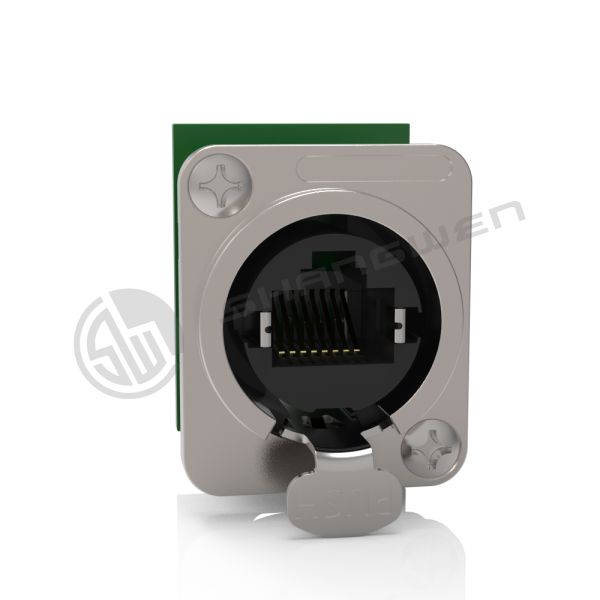

D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45

Rated Current : 1.5A

Place of Origin : Guangdong, China

IP level : IP44

Brand Name : SHANGWEN

Model Number : SW8FD-NGH

Type : RJ45 socket

Application : Ethernet

Gender : Female

Industrial electronics : accessories

Service life : >1000 times

MOQ : 10 pieces

Price : $2 / piece

Contact Now

Products Description

Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45
Model:SW8FD-NGH(indoor use)
D-shape panel connector with uniform metal flange and standard D-style installation size
Install from the rear of the panel
The rear end is a feedthrough RJ45
Mountable from the front or rear of the panel Complies with CAT 5e according to TIA/EIA568B and ISO/IEC11801 standard
