Shangwen Indoor 8 Pin RJ45 Plug Industrial Ethernet Connector RJ45 Panel Mount Socket Signal Network Connector 8p8c Female Panel

Name: Shangwen Indoor 8 Pin RJ45 Plug Industrial Ethernet Connector RJ45 Panel Mount Socket Signal Network Connector 8p8c Female Panel
Brand: SHANGWEN
Price: 0.90 USD

Shangwen Indoor 8 Pin RJ45 Plug Industrial Ethernet Connector RJ45 Panel Mount Socket Signal Network Connector 8p8c Female Panel Manufactures

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW8FDNH-N

Type : RJ45 socket

Application : Ethernet

Gender : Female

Industrial electronics : accessories

MOQ : 10 pieces

Price : $0.90-2 / piece

Contact Now

Products Description

Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.

Shangwen Indoor 8 Pin RJ45 Plug Industrial Ethernet Connector RJ45 Panel Mount Socket Signal Network Connector 8p8c Female Panel

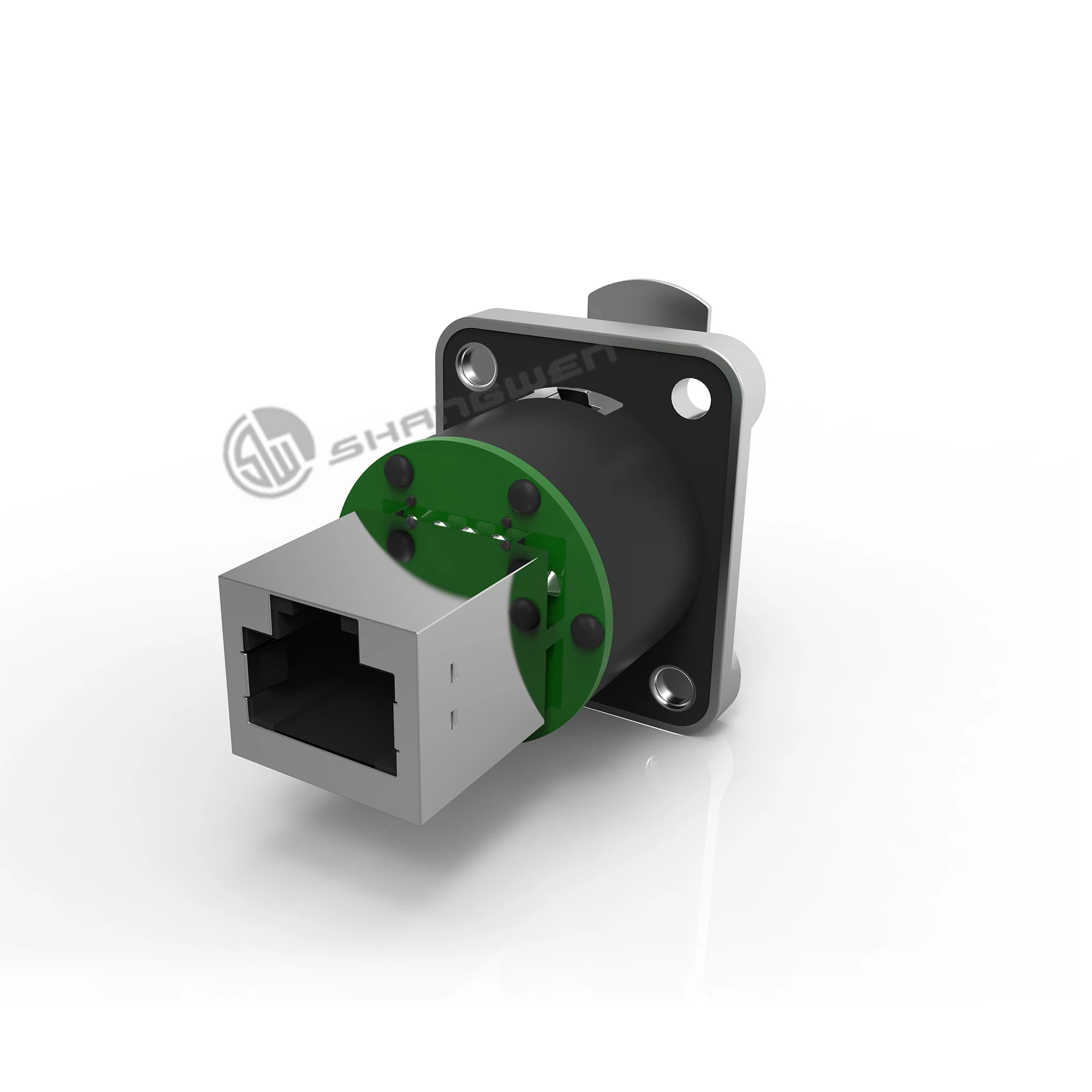

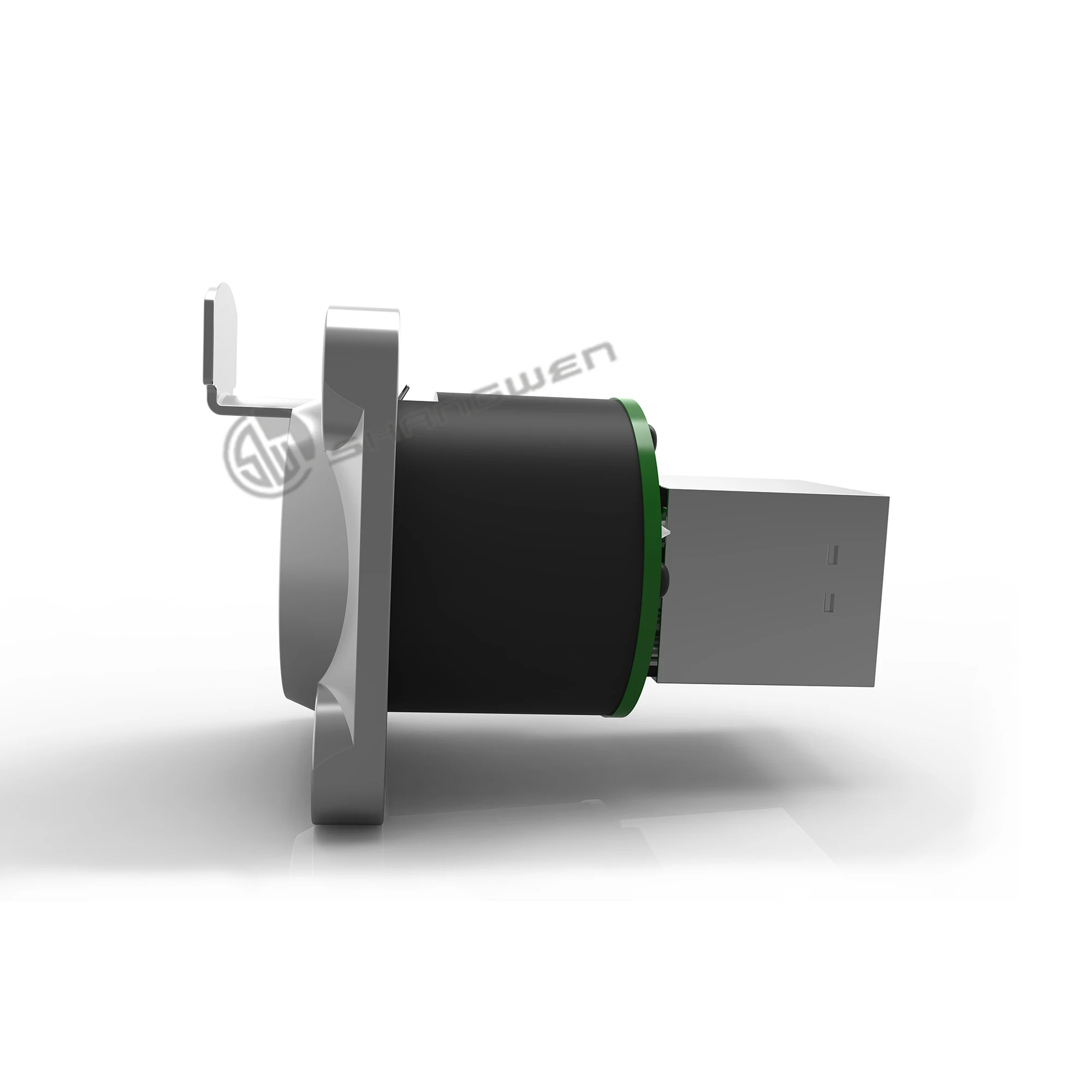

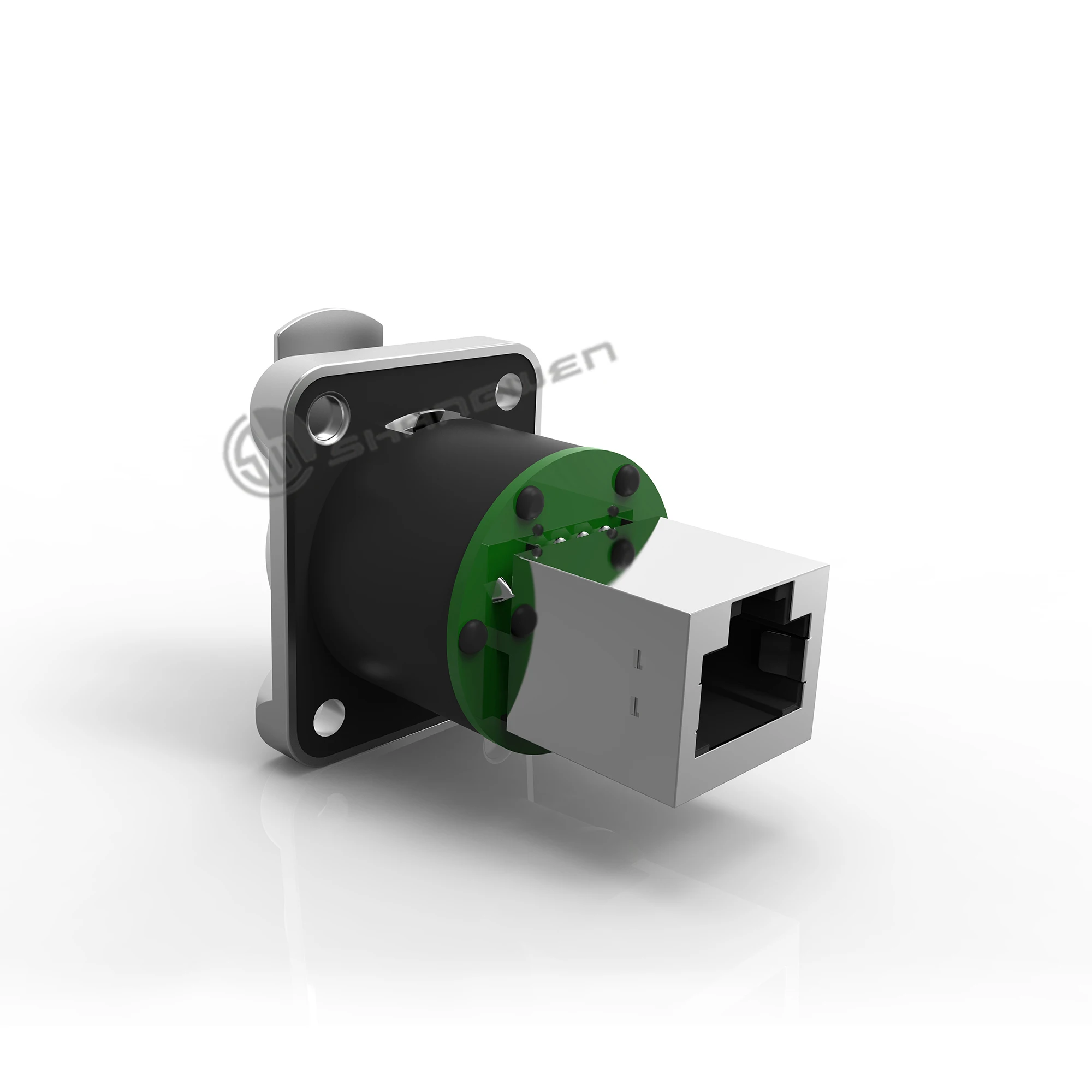

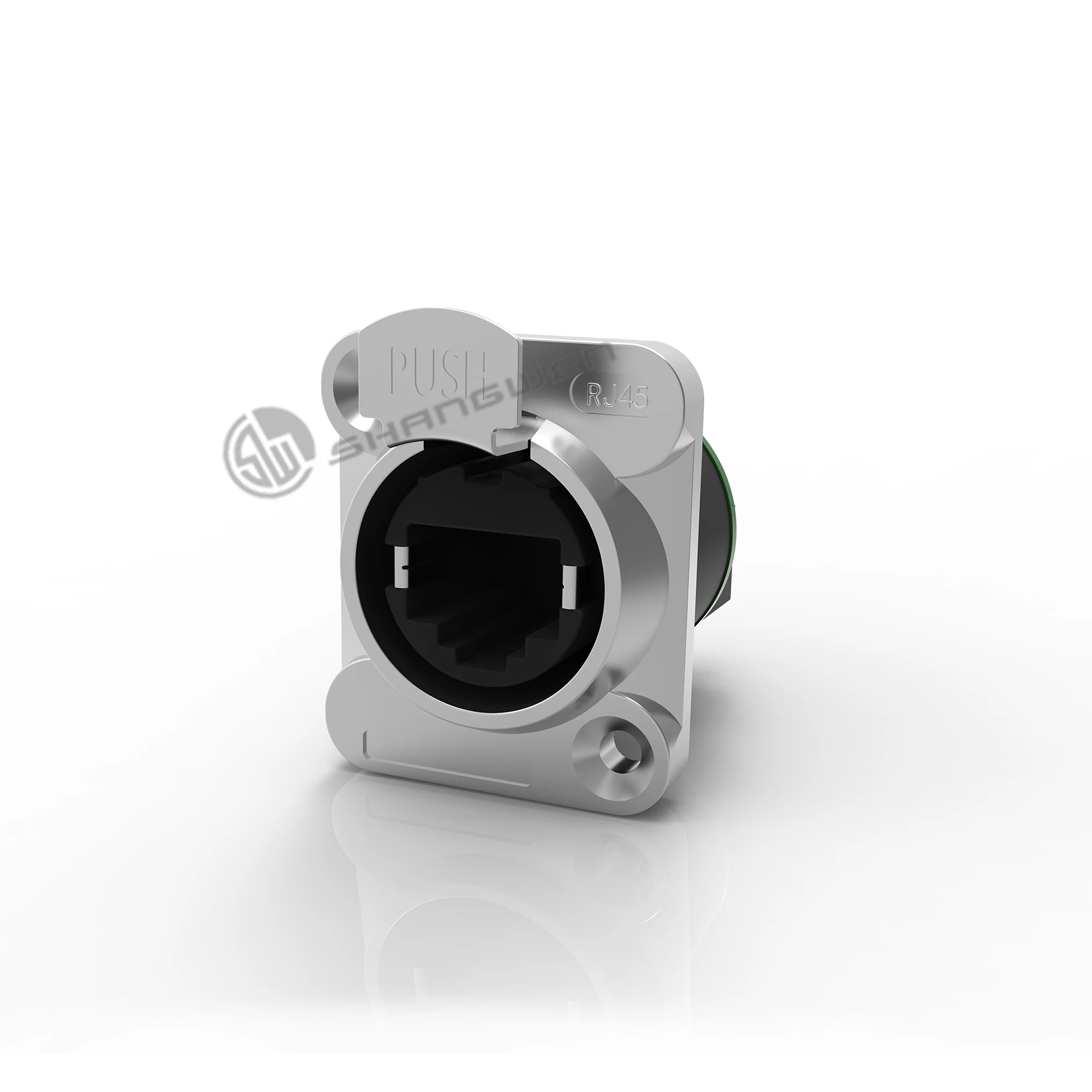

Model：SW8FDNH-N（indoor use）

*The rear end is a straight RJ45 port*

☑Accommodates SW8MC-A or any standard RJ45 plug

☑D style with uniform metal flanges

☑Approved latch lock system
☑Mountable from the front or rear of the panel

☑The back-end can be flexibly modified according to actual requirements

☑Complies with Cat5e according to TIA / EIA 568B and ISO / IEC 11801 standard ☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E ☑With shielding function

1. Electrical parameters

Contact resistance	＜10mΩ
Rated current	1.5 A
Rated voltage	50 V
Insulation resistance	≥0.5GΩ
Dielectric strength	1KV DC
Frequencyrange	1-100 MHz
Transmission performance	Cat 5E

2. Mechanical parameters

Service life	＞1000 times
Insertion force	≤ 20 N
Locking device	latch lock
Chassis shape	D style

3. Material and environmental parameters

Shell	Zinc diecast
Contacts	Bronze
Insert	PBT
Contact surface	Au
Shell surface	Pearl Cr
Temperature range	-30℃to +80℃
Level of protection	IP44

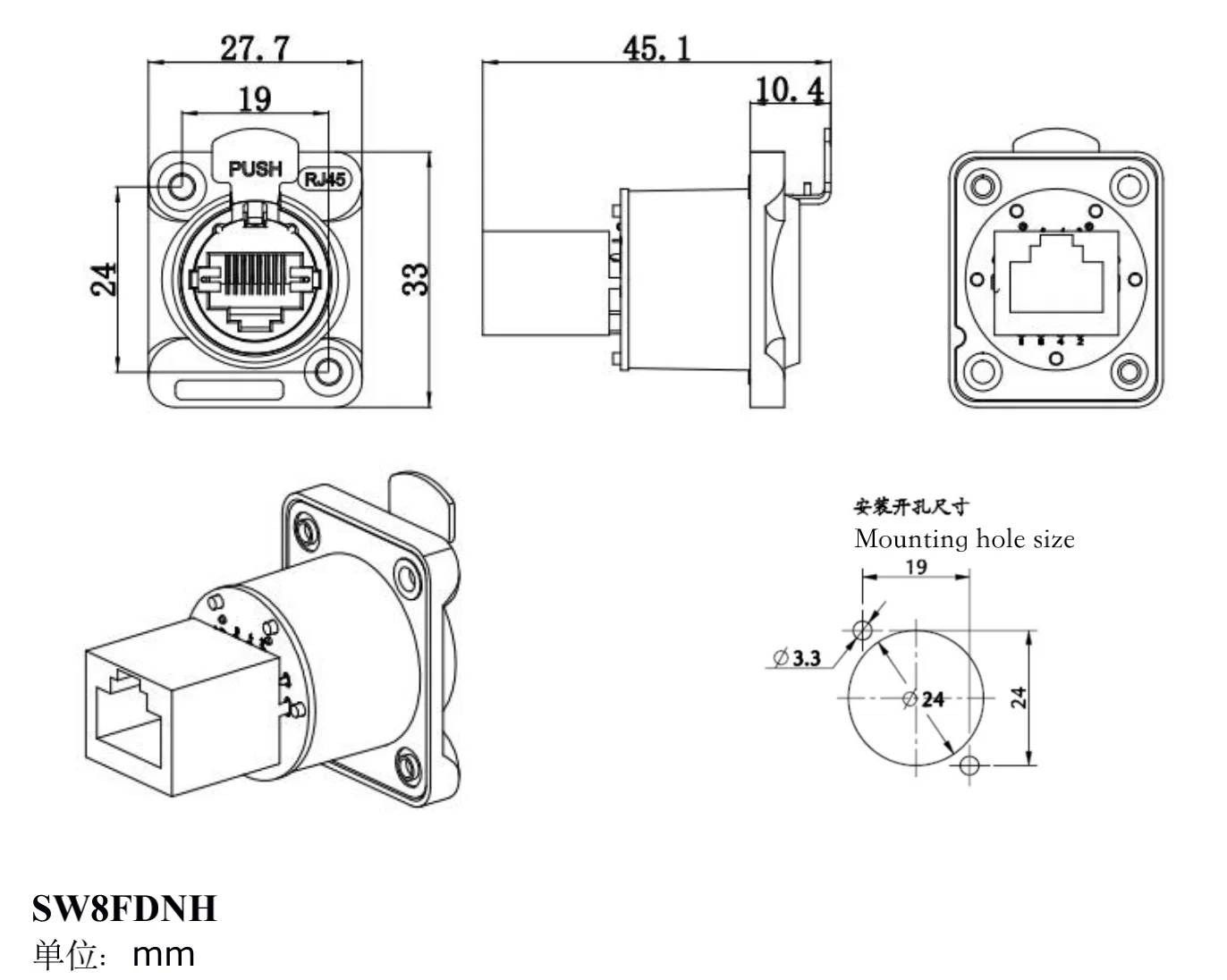

4.Size reference (unit /mm)

5.Internal structure reference

6. Installation instructions with SW8MC-A plugs

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
