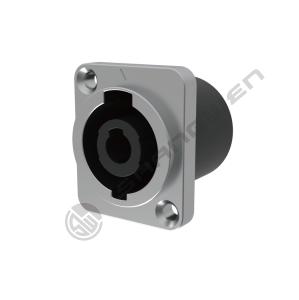

Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SWM4S-3ZM

Type : Loudspeaker

Application : Audio & Video

Gender : Male

Industrial electronics : accessories

MOQ : 10 pieces

Price : CN¥7.85/pieces 10-99 pieces

Contact Now

Products Description
4Pin Loudspeaker plug-Metal material
Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy
Model：SWM4S-3ZM
☑The extremely rugged metal case and fiberglass reinforced V-0 material inner core are designed for harsh environments
☑Sophisticated "quick lock" system
☑A large welding contact is attached, suitable for lines up to 6mm²(AWG10)
☑Equipped with internal gasket, protection class up to IP54 in connection state
1.Product parameters
Connection Type
Speaker
Gender
male
2.Electrical parameters
Contact resistance
＜2mΩ
Dielectric strength
2.8kVac
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
30A
Rated voltage
250 V ac
3.Mechanical parameters
Sign Cable O.D.
9-16mm
Service life
＞5000 mating cycles
Wire size
6 mm²
Wire size
10AWG
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Ag
Insert
Polyamide (PA 66 )
Shell
Zinc diecast,Nickel plating
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 V-0
Protection class
IP54
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy
Application area
Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy
Company Information
Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy
Patent & Certification
Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy
Exhibition activities
Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy
Packaging reference
Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy
Payment and logistics
Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy
FAQ
Male 4 Pin Connector for Audio Video Electronics IP40 Waterproof Extremely Rugged Loudspeaker Plug Silver Metal Brass Alloy
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
